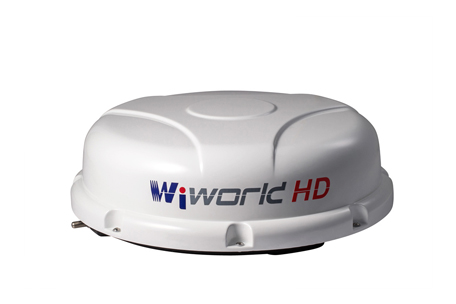

[ VM400 ]
High technology, In-motion Satellite
Antenna for Vehicles.

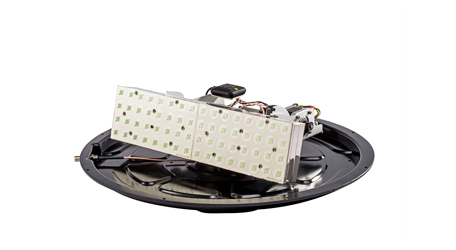

The VM400 antenna has a shape of double-axis waveguide. It is a representative double-axis in-motion satellite antenna of Wiworld and you can watch satellite broadcastings constantly and comfortably in moving objects, such as luxury RV cars, buses and trains. Using the excellent S/W of Wiworld‘s exclusive tracking algorithm, you can watch high quality satellite broadcastings with few defects and an outstanding performance.
Features
- Excellent algorithm, including the stance correction
- Supports satellite services all over the world
- The best quality using a stepping motor control
- Customized auto-skew, multi-output and GPS function
- Supports HD and SD
- One year warranty
Enjoy Satellite TV in moving Vehicles
Using the VM400 antenna, which uses Wiworld‘s excellent algorithm, tracking performance and RF technology, you can enjoy satellite TV in a moving object.
Specification
-
- Compact Size
- A compact antenna with a 450*150(H)mm size.
- Double-axis GPS antenna with a radome size and a waveguide type
-
- Easy Installation
- Using the magnet plate, an easy and substantial installation is possible
-
- High-performance Algorithm
- Provides the best performance with an excellent algorithm and a double-axis stepping motor control function.
- Can receive various channels using a single antenna
-
- One year Warranty
- Provides one year warranty all over the world
- Detailed specifications
- Comparison among products
- Download
- Accessories
- Mounted photo
| Antenna Type | Waveguide |
|---|---|
| Dish | 330*84 |
| Radome Dimension | 450*150 |
| Antenna Gain | 28 dBi |
| Min EIRP | 54 dBW |
| Polarization | Linear / Circular |
| Skew Control | - |
| Stabilized Type | 2-Axis Step motor |
| EL Range | 0 ~ 90 |
| AZ Range | Unlimit |
| GPS | Option |
| Power | 12V, 2A |
| Multi-output | Single |
| VM400 | |
|---|---|
| Antenna Type | Waveguide |
| Dish | 330*84 |
| Radome Dimension | 450*150 |
| Antenna Gain | 28 dBi |
| Min EIRP | 54 dBW |
| Polarization | Linear / Circular |
| Skew Control | - |
| Stabilized Type | 2-Axis Step motor |
| EL Range | 0 ~ 90 |
| AZ Range | Unlimit |
| GPS | Option |
| Power | 12V, 2A |
| Multi-output | Single |
| Download 1 | file preparing |
|---|---|
| Download 2 | file preparing |
