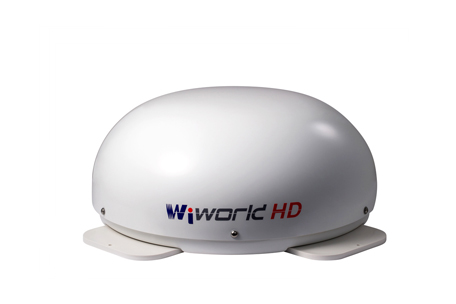

[ VM324P ]
High technology, In-motion Satellite
Antenna for Vehicles.
The VM324P is a representative in-motion satellite antenna of Wiworld and you can watch satellite broadcasting constantly and comfortably in a moving object, such as luxury RV cars, buses and trains. Using the excellent S/W of Wiworld‘s exclusive tracking algorithm, you can watch high quality satellite broadcastings with few defects and an outstanding performance.
Features
- Excellent algorithm
- Supports satellite services all over the world
- The best quality due to a double-axis stepping motor control
- Customized auto-skew, multi-output, GPS function available
- Supports HD and SD
- One year warranty
Enjoy Satellite TV in moving Vehicles
Using VM324P antenna that mounted Wiworld‘s excellent algorithm, tracking performance and RF technology, you can enjoy a satellite TV antenna in a moving object.
Specification
-
- Compact Size
- Compact size antenna with a size of 550*250(H)mm. Radome size.
- Receives a high signal despite the small dish.
-
- Easy Installation
- 자Using the magnet plate, an easy and substantial installation is possible
-
- Provides the best performance with an excellent algorithm and a stepping motor control function
-
- Customizing System
- Auto-Skew, Multi-Output and GPS available.
- LNB for customized areas. Supports linear and circular polarization.
-
- IN DOOR UNIT
- Satellite selection function.
- S/W Update Support available by easily changing the repeater
-
- One year Warranty
- Provides one year warranty all over the world
- Detailed specifications
- Comparison among products
- Download
- Accessories
- Mounted photo
| Antenna Type | Offset Antenna |
|---|---|
| Dish | 37cm cutting |
| Radome Dimension | 550*250 |
| Antenna Gain | 30 dBi |
| Min EIRP | 52 dBW |
| Polarization | Linear (V/H) |
| Skew Control | Manual |
| Stabilized Type | 2-Axis Step motor |
| EL Range | 30~70 |
| AZ Range | Unlimit / 450 |
| GPS | No |
| Power | 12V, 3A |
| Multi-output | Optional |
| VM324P | |
|---|---|
| Antenna Type | Offset Antenna |
| Dish | 37cm cutting |
| Radome Dimension | 550*250 |
| Antenna Gain | 30 dBi |
| Min EIRP | 52 dBW |
| Polarization | Linear (V/H) |
| Skew Control | Manual |
| Stabilized Type | 2-Axis Step motor |
| EL Range | 30~70 |
| AZ Range | Unlimit / 450 |
| GPS | No |
| Power | 12V, 3A |
| Multi-output | Optional |
| Download 1 | file preparing |
|---|---|
| Download 2 | file preparing |
